Tube processing machine

Aluminum CNC Cutting Machine

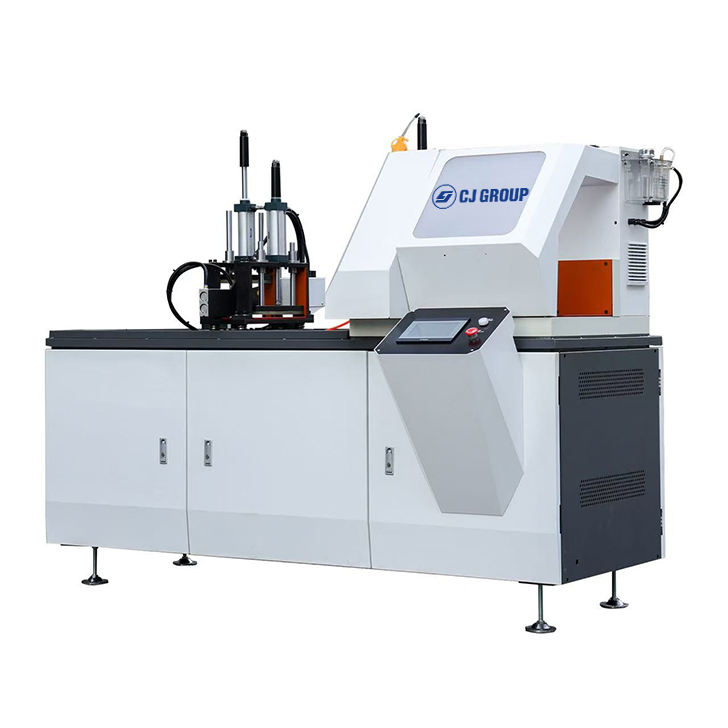

CJ-505CNC Aluminum Cutting Saw

CJ-455/505CNC aluminum cutter uses a servo feed programmable controller, which, with the set program and in conjunction with automatic components, repeatedly performs tight automatic cycling work, such as feeding, clamping, and sawing materials. Special clamps can be designed according to the actual workpiece, holding multiple tubes for simultaneous sawing, which significantly increases productivity. There is also a counter to tally the sawing output, achieving truly full automation.

Features:

The concealed saw blade ensures safe up and down operation.
Automatic oil spraying, burr-free cutting surface, and more durable saw blade.
Capable of single or multiple cuts at a time, suitable for both small and large batch production.
Can perform 45-degree or 90-degree cuts.
Solves the problem of traditional machine splatter and improves the working environment.

Technical data

Model455505
Sawing Angle90&45°90
Sawing Size(mm)370*135150*350
Motor Power(KW)45.5
Saw Blade Speed50HZ 3200RPM
Saw Blade Size / Puter Dia(mm)355-455 Normal405405-505 Normal505
Needed Pressure(kg/cm)0.6-0.8/
Feed Length(mm)6-7001000+N times
Machine Size(mm)2000*900*1700

2200x900x1700

Weight(KG)9501000
