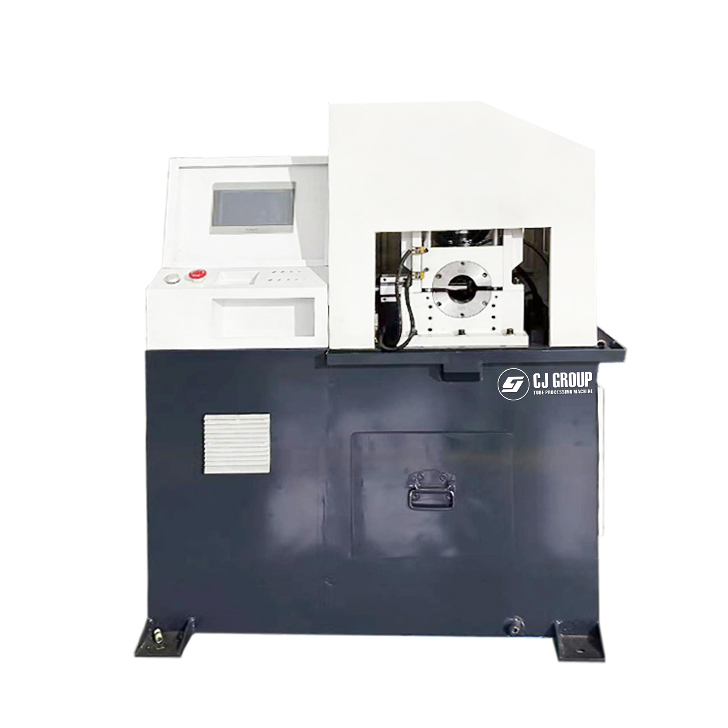

CNC Single End Chamfering Machine


CNC Single End Chamfering Machine
CNC Single End Chamfering Machine

CJ-80CNC Chamfer Machine

The CJ-80 CNC Chamfering Machine With Servo Motor, expertly designed to handle tube and bar chamfering with an impressive capacity of up to 80mm OD. This robust machine is perfect for efficient single tube end chamfering, and also caters to solid bars, offering versatility and precision in your metalworking projects.
Features:
1.Ensures Clean Surfaces for Tube Welding
2.Accurate Angular Chamfers for Enhanced Fitting & Assembly
3.Comprehensive I/O Chamfering & Facing Or Boring for Precision
4.Smooth Radius Chamfering for Improved Finishing
5.Precise Centering & Outer Chamfer and Drilling for Solid Bars

request a quote

Model

CJ-80CNC

Pipe Diameter

8-80mm

Work Length

≥70mm

Work accuracy

±0.1mm

Work Speed

3-5s/pcs

Machine Motor

3.5kw

Work Pressure

MPA 6-8KG

Weight

300KG

Dimension

110*110*130cm

Suit Material

Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc

Shape Available

Round, Square, Hex, Bent Shape etc

Workpiece Available

Pipe, Tube, Round Bar,Threaded Rod, Bolt, Nut etc




Send A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products

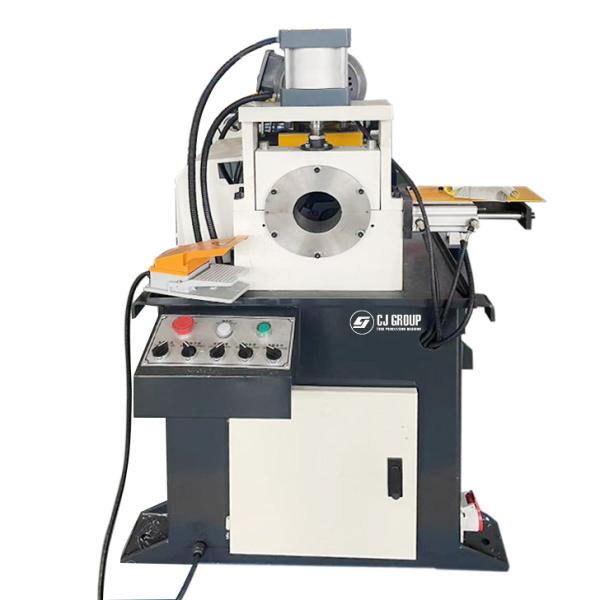

Heavy Duty Tube Chamfering Machine
Heavy Duty Tube Chamfering Machine
The CJ-230 Chamfering Machine: Ideal for Tube and Bar Chamfering up to 230mm OD" "Enhance your metalworking capabilities with the CJ-230 Chamfering Machine, ex......

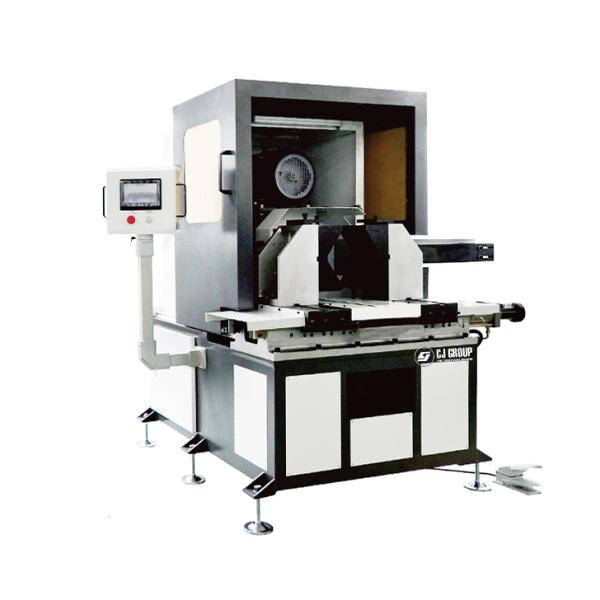

Large OD Tube Beveling Machine
Large OD Tube Beveling Machine
The CJ-500 Chamfering Machine: Ideal for Large Diameter Tube and Bar End Beveling and Chamfering up to 500mm OD" "Enhance your metalworking capabilities with t......

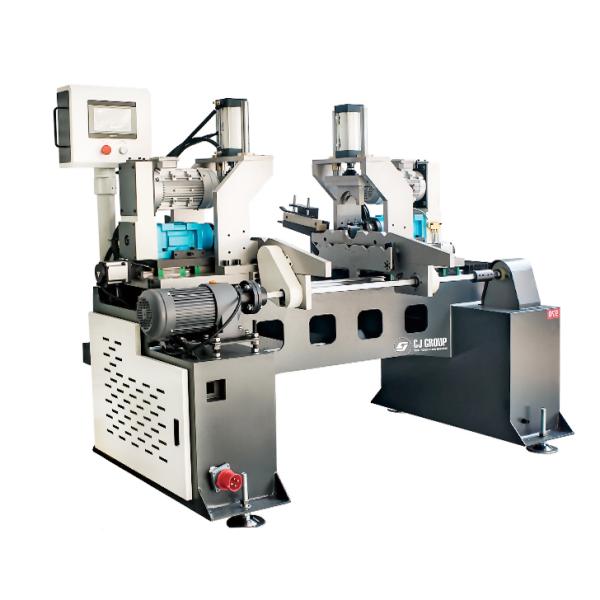

CNC Tube Chamfering Machine Without Cover
CNC Tube Chamfering Machine Without Cover
Precision Chamfering and Adjusting Solution for Double-Ended Tubes and Solid Bars Experience advanced precision with our OD 90mm Double Tube End Chamfering and ......

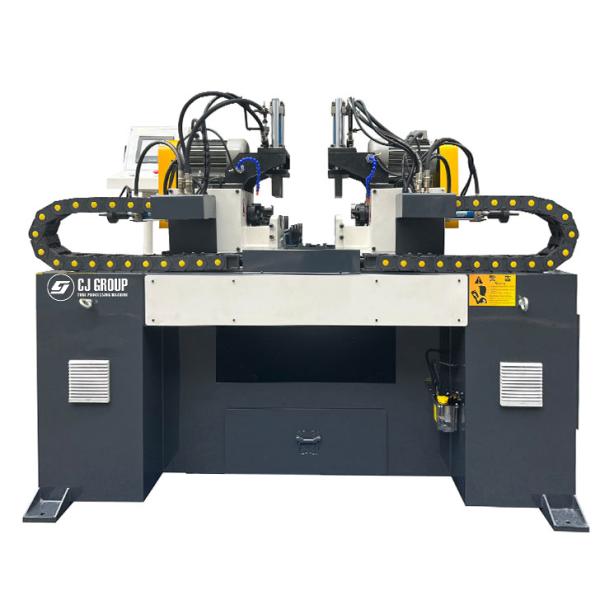

Automatic Pipe Chamfering Machine
Automatic Pipe Chamfering Machine
Chamfering Capacity up to OD 60mm, with 500mm Working Lengths Our advanced feeding mechanism is engineered with a state-of-the-art tray-type structure, ideal ......
CNC Single End Chamfering Machine
CNC Single End Chamfering Machine
The CJ-80 CNC Chamfering Machine With Servo Motor, expertly designed to handle tube and bar chamfering with an impressive capacity of up to 80mm OD. This robust......

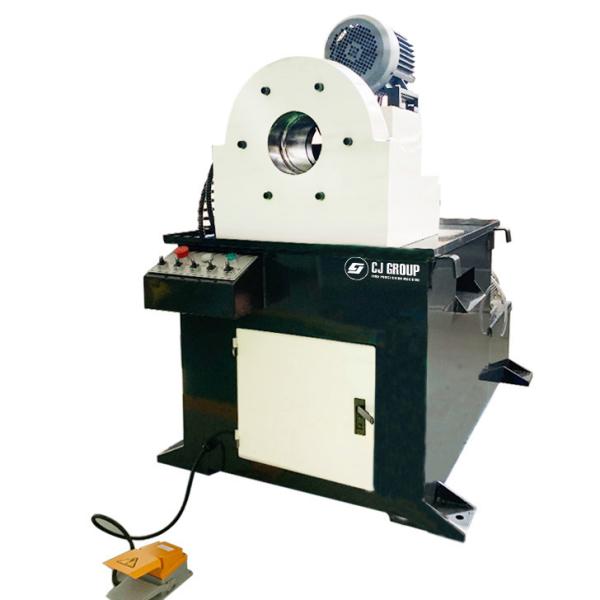

Hydraulic Tube Chamfering Machine
Hydraulic Tube Chamfering Machine
The CJ-180 Chamfering Machine: Ideal for Tube and Bar Chamfering up to 180mm OD" "Enhance your metalworking capabilities with the CJ-180 Chamfering Machine, ex......

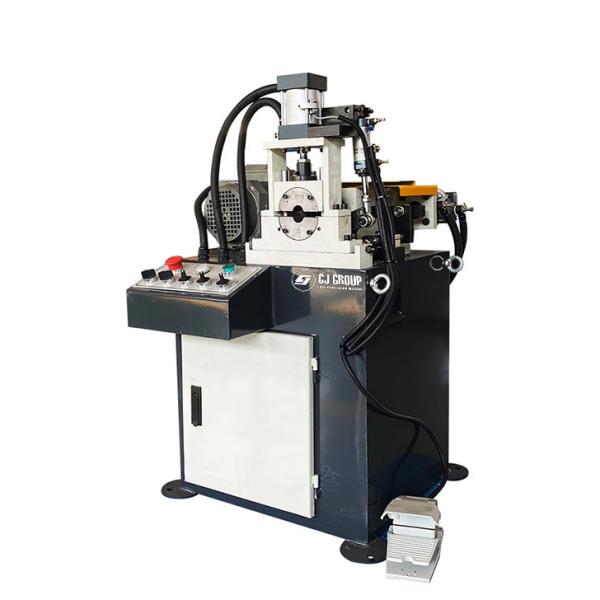

Single Tube End Chamfering Machine
Single Tube End Chamfering Machine
Experience the efficiency and precision of the CJ-60 chamfering machine, accommodating tube ends with an outer diameter (OD) of up to 60mm. This advanced chamfe......

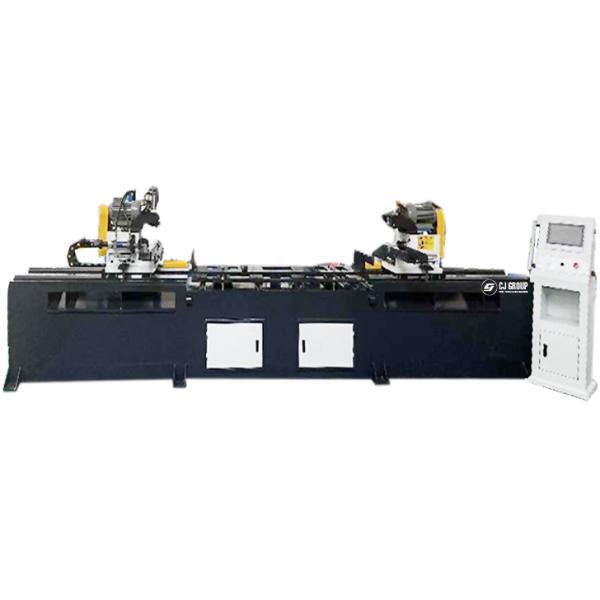

Long Pipe Chamfering Machine
