Hydraulic Tube Chamfering Machine


Hydraulic Tube Chamfering Machine
Hydraulic Tube Chamfering Machine

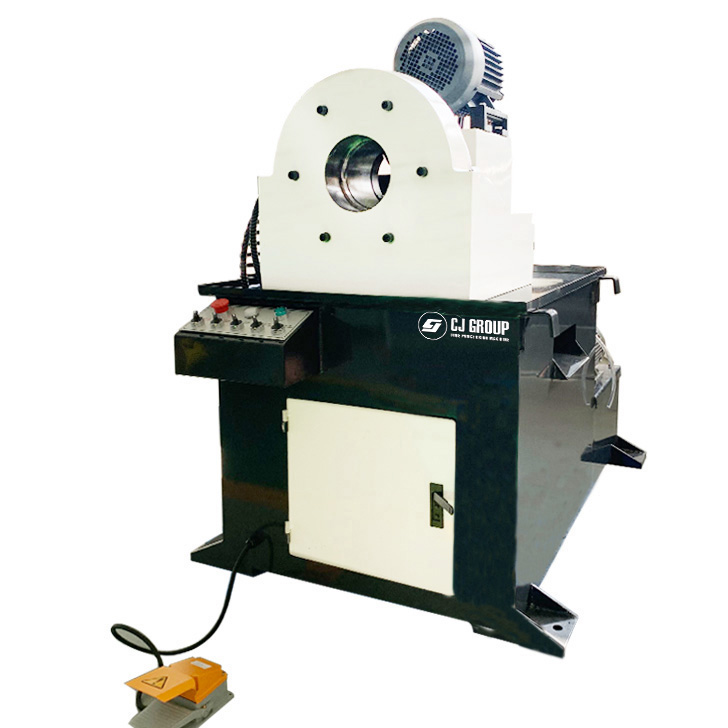

CJ-180 Pipe End Chamfering Machine

The CJ-180 Chamfering Machine: Ideal for Tube and Bar Chamfering up to 180mm OD"
"Enhance your metalworking capabilities with the CJ-180 Chamfering Machine, expertly designed to handle tube and bar chamfering with an impressive capacity of up to 180mm OD. This robust machine is perfect for efficient single tube end chamfering, and also caters to solid bars, offering versatility and precision in your metalworking projects."

Features:
Ensures Clean Surfaces for Tube Welding
Accurate Angular Chamfers for Enhanced Fitting & Assembly
Comprehensive I/O Chamfering & Facing Or Boring for Precision
Smooth Radius Chamfering for Improved Finishing
Precise Centering & Outer Chamfer and Drilling for Solid Bars"

request a quote

Paremeters

Model

CJ-180

Pipe Diameter

20-180mm

Bar Diameter

5-35mm

Work Length

≥50mm

Work accuracy

±0.1mm

Work Speed

4-10s/pcs

Machine Motor

4kw

Work Pressure

MPA 6-8KG

Weight

500KG

Dimension

120*140*155cm

Suit Material

Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc

Shape Available

Round, Square, Hex, Bent Shape etc

Workpiece Available

Pipe, Tube, Round Bar,Threaded Rod, Bolt, Nut etc
