Single Tube End Chamfering Machine


Single Tube End Chamfering Machine

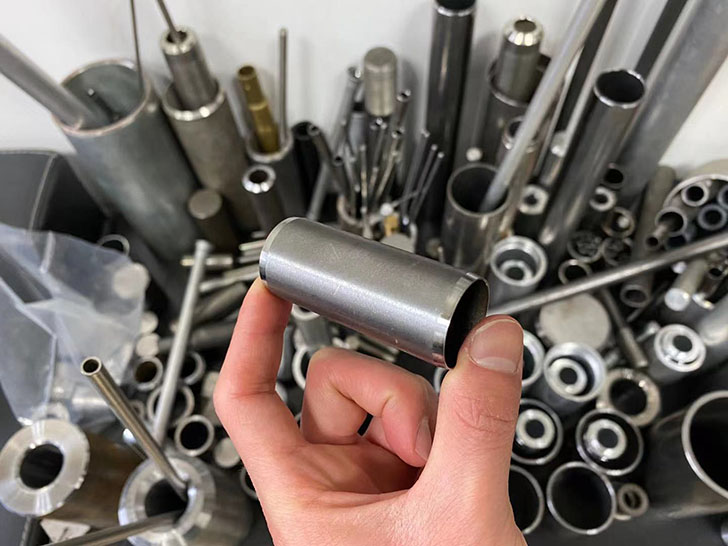

Single Tube End Chamfering Machine Samples

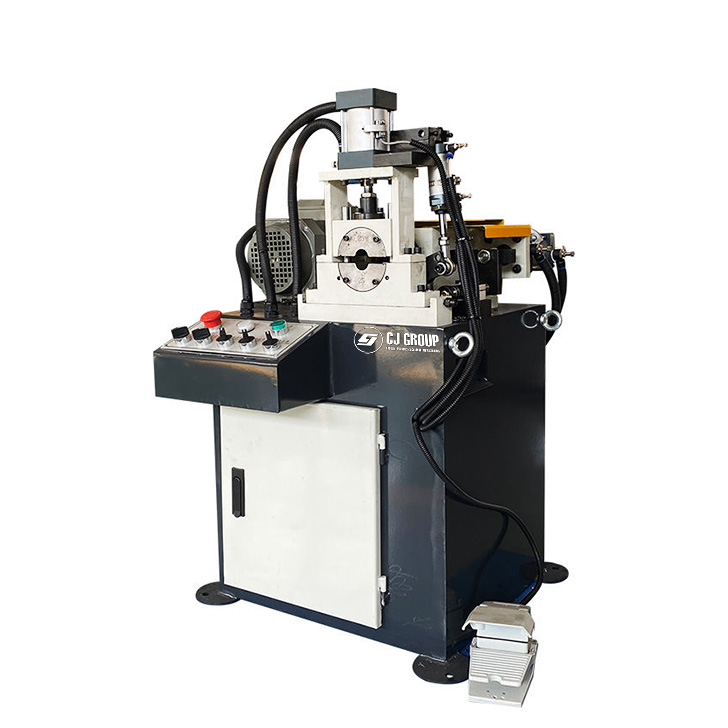

CJ-60 Pneumatic Chamfering Machine

Experience the efficiency and precision of the CJ-60 chamfering machine, accommodating tube ends with an outer diameter (OD) of up to 60mm. This advanced chamfering solution is perfect for single tube end chamfering and is also compatible with solid bars.


Features:
Ensures Clean Surfaces for Tube Welding
Accurate Angular Chamfers for Enhanced Fitting & Assembly
Comprehensive I/O Chamfering & Facing Or Boring for Precision
Smooth Radius Chamfering for Improved Finishing
Precise Centering & Outer Chamfer and Drilling for Solid Bars"

request a quote

Parameters:

Model

CJ-60

Type

Pneumatic /Hydraulic

Pipe Diameter

6-60mm

Bar Diameter

6-20mm

Work Length

≥35mm

Work accuracy

±0.1mm

Work Speed

3-5s/pcs

Machine Motor

1.0kw

Work Pressure

MPA 6-8KG

Weight

200KG

Dimension

800*600*110cm

Suit Material

Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc

Shape Available

Round, Square, Hex, Bent Shape etc

Workpiece Available

Pipe, Tube, Round Bar,Threaded Rod, Bolt, Nut etc
