Large OD Tube Beveling Machine

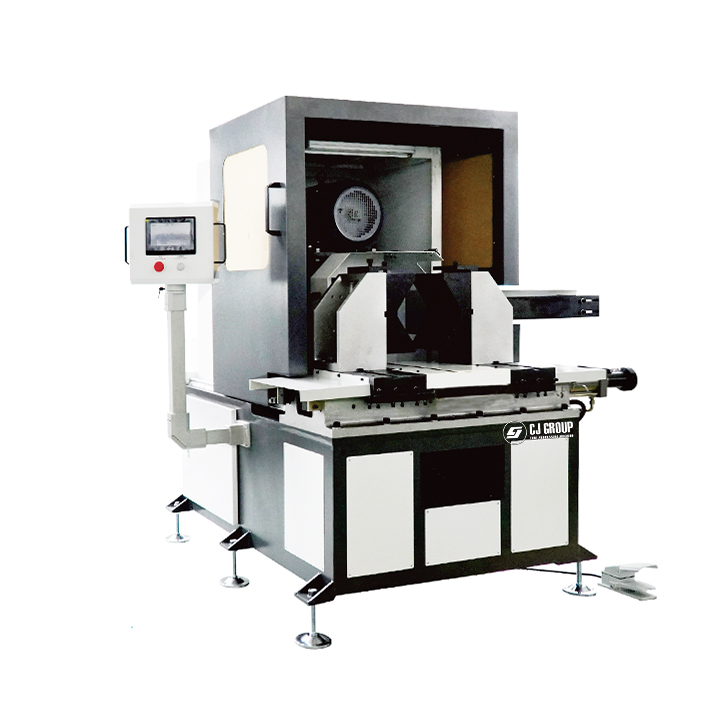

CJ-500 Tube Beveler Machine

The CJ-500 Chamfering Machine: Ideal for Large Diameter Tube and Bar End Beveling and Chamfering up to 500mm OD"
"Enhance your metalworking capabilities with the CJ-500 Chamfering Machine, expertly designed to handle tube and bar chamfering with an impressive capacity of up to 500mm OD. This robust machine is perfect for efficient single tube end chamfering, and also caters to solid bars, offering versatility and precision in your metalworking projects."

Features:
Ensures Clean Surfaces for Tube Welding
Accurate Angular Chamfers for Enhanced Fitting & Assembly
Comprehensive I/O Chamfering & Facing Or Boring for Precision
Smooth Radius Chamfering for Improved Finishing
Precise Centering & Outer Chamfer and Drilling for Solid Bars"

Paremeters

Model

CJ-300

CJ-400CJ-500CJ-600

Pipe Diameter

100-300mm

100-400mm200-500mm200-600mm

Work Length

≥200m

Work accuracy

±0.1m

Work Speed

60s/p

120s/pc
Thickness≤15mm

Main Motor

4kw

5.5kw7.5kw11kw

Dimension

2200*2000*1800mm

Suit Material

Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc

Shape Available

Round, Square, Hex, Bent Shape etc

Workpiece Available

Pipe, Tube, Round Bar,Threaded Rod, Bolt, Nut etc
